MELTING TANKS AND WAXMELTERS
Dip Seal's quality tanks are fabricated from stainless steel, cast aluminum, or prefabricated steel enclosed in a power coated steel jacket. Constructed for even heating The Dip Seal tanks feature thermostatic controls for constant preset working temperatures. Round and rectangular models in capacities ranging from 1 quart to 5 gallons are available, or we will fabricate a tank to meet your special needs.
Round dipping tanks with valve (DS4QTS, DS2GS, DS3GS, DS5GS) are typically used in the candle making industry. The valves are suitable for wax or materials that are viscous at 130º. The 60-300º temperature span thermostat is perfect for lower melting point materials.
Dip Seal also offers Thermometers and Replacement parts for all of our tanks.
Listed below are Dip Seal's stock sizes, but we can accommodate most size needs. Custom sizes can be built and most tanks are available in 240 volts for an additional $10.00.
All Dip Seal Tanks are pre-set for even heating. Each tank features thermostatic controls to assure constant preset temperatures.
Round Dipping Tanks 60-450º Temp Span
Round Dipping Tanks With Valve 60-300º Temp Span

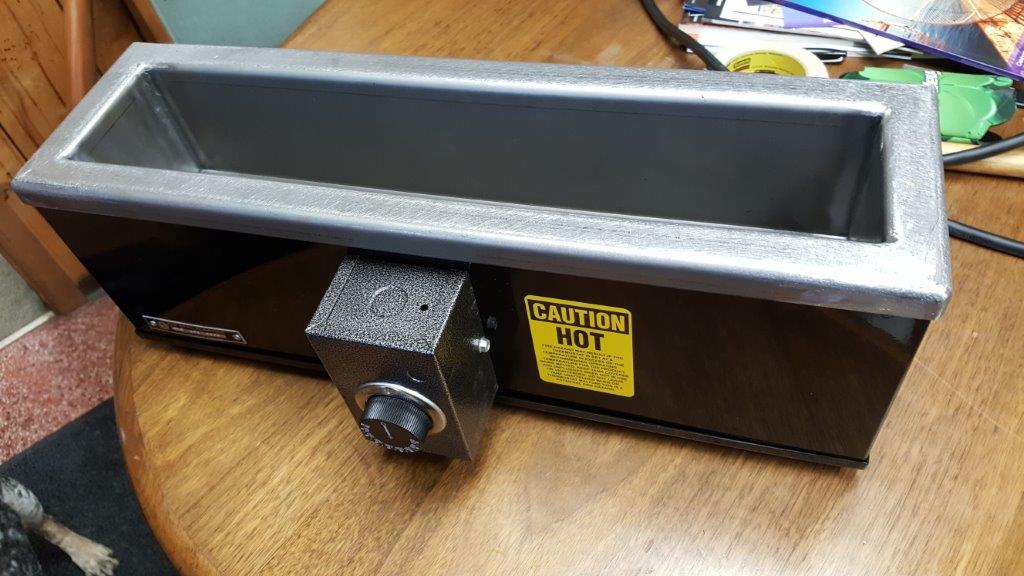

Rectangular Dipping Tanks 60-450º Temp Span
Depth
4 in
Voltage
120 V or 240 V
Volume
5-1/2 Qt
Temperature Span (°F)
60-450
Length
20 in
Width
4 in
Watts
1100
120V
700.00
240V-1PH
700.00
Depth/Height
4 in
Dip Seal has redesigned all our melting tanks. All our tanks now have a bulb and capillary thermostat from the previous bi-metallic thermostat most of the industry has used for decades. A bulb and capillary thermostat offers more precise temperature control and a more dependable thermostat with far fewer malfunctions. Dip Seal will continue to inventory the original bi-metallic thermostat for a time to be able to provide replacements to our customers as needed.
